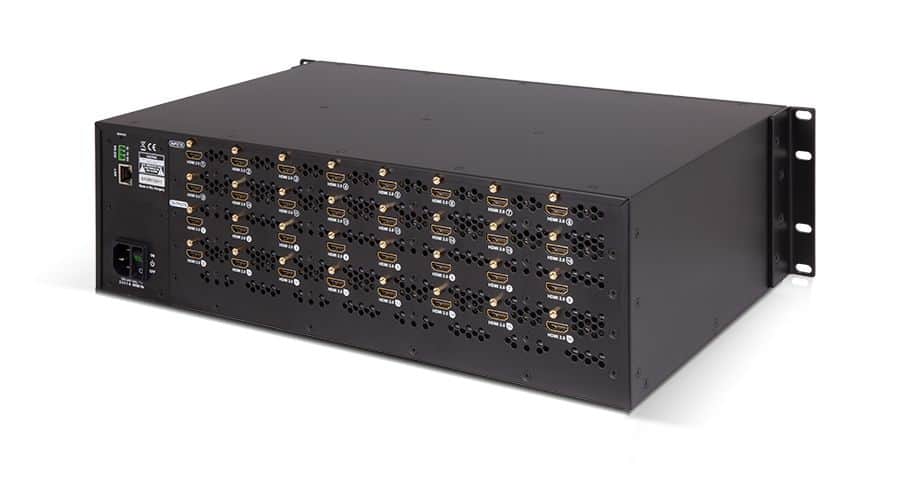

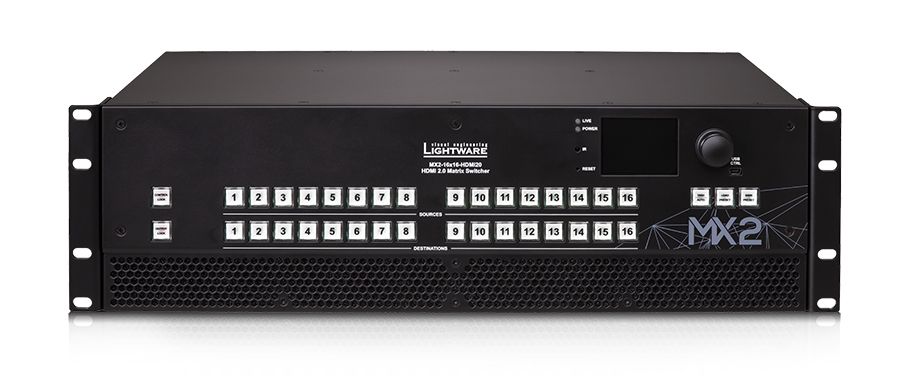

The Lightware MX2-16x16-HDMI20 is a member of the stand-alone HDMI 2.0 matrix switcher family that supports uncompromising 4K UHD resolution at 60Hz 4:4:4.
Its excellent port density makes it ideal for rental and installation applications as well as future-proof operations centers. It is the perfect choice for installations where a maximum of 16 HDMI 2.0 compatible input and output ports are required.
This standalone product has 16 HDMI 2.0 inputs and 16 HDMI 2.0 outputs that transmit up to 4K at 60 Hz in 4:4:4 format and support 3D, Dolby TrueHD and DTS HD Master Audio.
- Inputs: 16x HDMI 2.0
- Outputs 16x HDMI 2.0
- HDCP 2.2 and HDCP 1.4 compatible with cross-conversion functions
- Device control via Ethernet (TCP / IP), RS-232 and USB
- Supports HDMI 4K signal formats (4K UHD @ 60Hz RGB 4:4:4, up to 18 Gbps)
- HDMI 2.0, HDMI 1.4 and DVI 1.0 compatible
- HDR and Dolby Vision support
- Uncompressed video with a data rate of up to 18 Gbit/s (600 MHz pixel clock)
- extended EDID management
