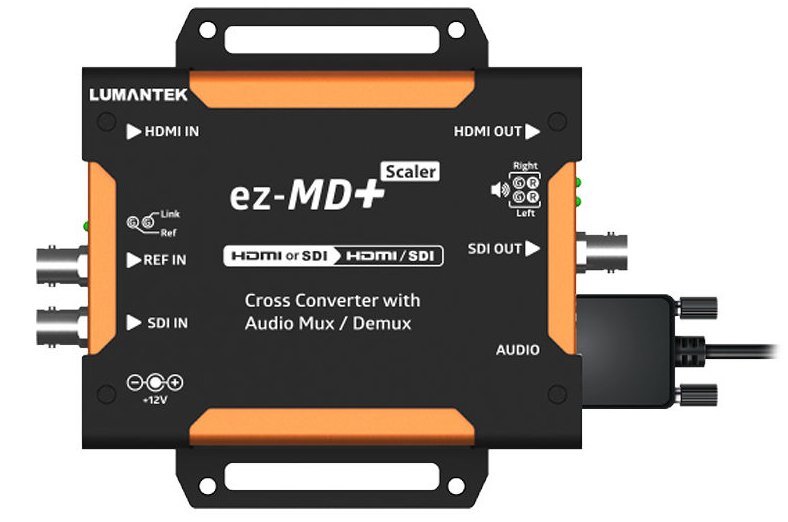

The Lumantek ez-MD+ Scaler Embedder De-Embedder from LUMANTEK is a compact cross-converter for HDMI to SDI or SDI to HDMI. The genlock system allows signals to be synchronized to combine unpaired output signals. It supports XLR balanced audio with audio delay controller.
LUMANTEK ez-MD + can convert the resolution of incoming video to any resolution from 480i to 1080p60. You can also change the video display ratio. You can choose between 16:9 (Full) and 4:3 (Pillar Box) to meet your requirements. All these functions are controlled by dip switches.
Audio embedding / de-embedding with external XLR audio
Audio delay control
Use the rotary switch to control the audio delay of the video source (50ms steps).
There is a "Free Running" -, "Input Lock" - and a "Genlock" mode to synchronize your video signal. The genlock system ensures correct synchronization of the signals when the source is synchronized with the external signal.
