Panzerkabel HDMI 4K UHD fiber cable : 100 m

Highly flexible HDMI-AOC fiber optic cables with metal armouring of armored cables.

The performance of the fiber allows image transmission in 4K at 60Hz. In addition, the special cables are highly resistant to kicking, pulling and crushing. In the short term, they can withstand loads of up to 200 kilograms and withstand a tensile force of up to 25 kilos. Despite their resistance, the cables are pliable and flexible - predestined for demanding use at major events.

Besides resistance and durability, our cables also offer uncomplicated handling. Thanks to EDID and HDCP management, the cables work seamlessly with all standard Windows PCs and Apple computers, even in resolutions outside the VESA standard, and do not require an additional external power supply.

Performance data:

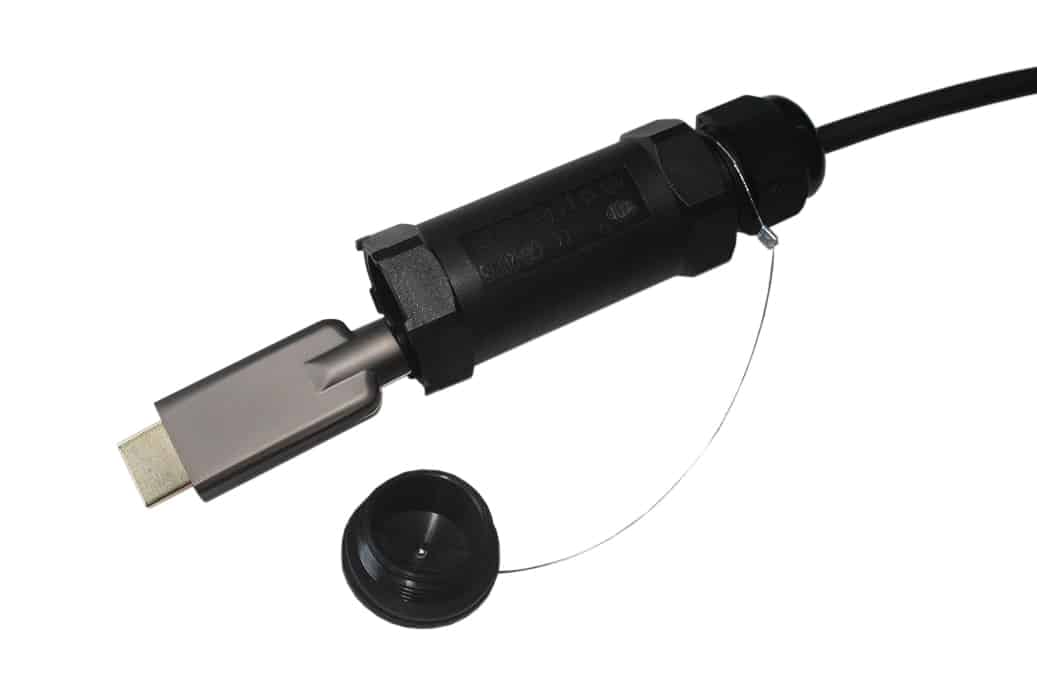

• screwable plug protection


• HDMI 2.0, HDCP 2.2, active optical cable


• Metal reinforcement, armored, TPU-jacket


• Crush resistance: long-term 100kg; short-term 200kg


• Video bandwidth 18 Gbps


• Resolution max. 4K@60 (4:4:4) 2160i/p


• PC resolution up to WUXGA 1920 x 1200 pixels


• 3D, deep color, x.v.Color, HDR ready


• robust metal connectors


• Kevlar reinforced cable, cable diameter 5,8mm


• Tractive force up to 25kg


• no external power supply necessary


• on Schill GT310 cable drum
